Soft Felt - Standard Carbon Felt
Specification:
Length (m) ≤ 20m
Width (m) ≤ 1.4m
Thickness (mm) 3-18mm
Warp direction: 8 ~ 14
Weft direction: 10 ~ 16
Thermal conductivity: < 0.08 w / m.k
Ash content: 0.765%
Application :
1. Soft Felt can be used as a flame retardant material in the insulation industry;
2. As a porous material, it can be used as a catalyst carrier for the chemical industry;
3. Soft Felt can be used as a corrosion-resistant material for the lining or external protective layer of composite materials.
4. Soft Felt can be widely used as a conductive, absorbing and absorbing material in aviation, batteries, electrodes (such as electrode tubes, electrode sticks, etc.); at present, applications related to conductive concrete are also developing rapidly.
Features:
The adsorption capacity of COD, BOD and oil in aqueous solution is much higher than GAC. The adsorption resistance is small, the speed is fast, and the absorption is rapid and thorough.
Technical index:
| Thermal Conductivity(W/m·k) | 0.05-0.16 |
| Carbon content(%) | 90-95 |
| Ash content(%) | ≤0.76 |
| Specific heat(KJ/Kg·K) | 1.52-1.73 |
| Test weight(g/cm3) | 0.15-0.17 |
| Tensile strength | Vertical:(N/mm2)≥0.12 Horizontal:(N/mm2)≥0.10 |
| Specific resistance(Ω·mm2/m) | Horizontal:8.2×103—11.1×103 Vertical:11.8×103—16.8×103 |
Introduction:
Carbon fiber felt is a felt made of carbon fiber. It has a broad absorption spectrum with a large capacity. The adsorption capacity of gasoline, aldehydes, phenols, alcohols, olefins, and other organic vapors is several times to dozens of times larger than that of activated carbon (GAC). It has good adsorption for inorganic gases (such as No, N, HF, HCl, etc.).
Product Tags:
|
|

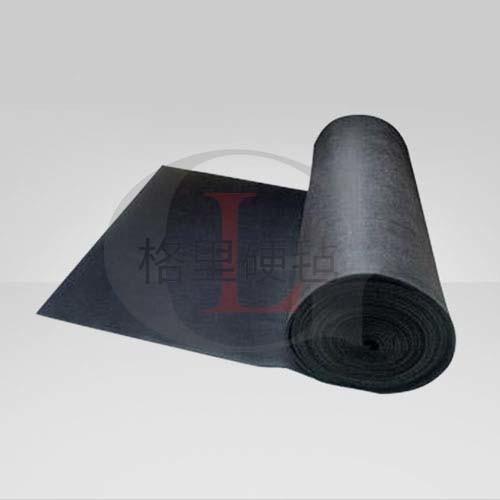

1.4m Width Soft Carbon Fiber Graphite Felt Insulation Images
|
